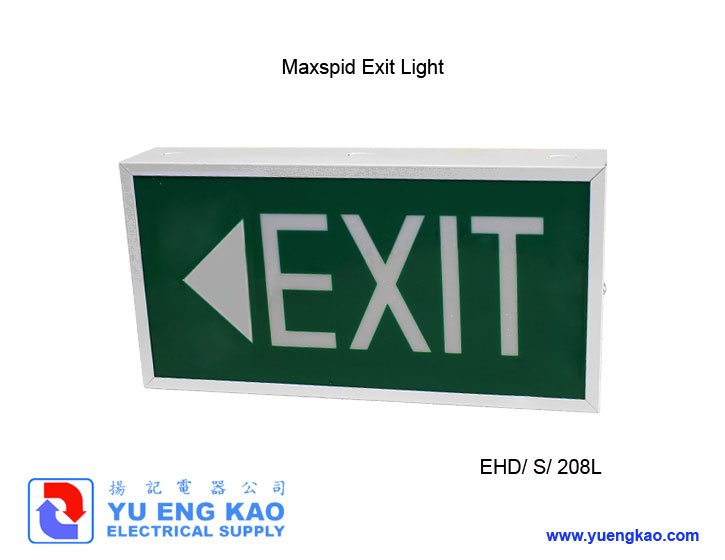

EHD/ S/ 208L
Exit Light
Item Description:
Exit Light
| Model | : | EHD/ S/ 208L |
| Type | : |
DOUBLE SIDED WITH |
| Mode of Operation | : | SUSTAINED |
| Lamp | : | 2x 8W FLUORESCENT LAMP |
| Rated Duration | : | 2 HOURS (OTHER DURATION AVAILABLE) |
| Main Supply | : | 230V/ 50Hz (OTHER VOLT & Hz AVAILABLE |
| Power Consumption | : | 12VA |
| Battery | : | MAINTENANCE FREE HIGH TEMP. RATED NICKEL CADMIUM CELLS |
| Charger | : | FULLY AUTOMATIC CONSTANT CURRENT |
| Charge Monitor | : | RED LED 5mm Ø |
| Test Facility | : | MICRO SWITCH |
Safety Feature |
: |
LOW VOLT CUT-OFF TO PREVENT OVER-DISCHARGE OF BATTERY |
| Fitting Construction | : | ELECTRO GALVANISED STEEL WITH EPOXY POWDER COATING |
| Diffuser | : | FIRE RETARDANT MOULDED ACRYLIC |
| Legend | : | ISO GREEN, OTHER LEGEND OPTIONAL |
| Mounting | : | CEILING |
| Cable Entry | : | 20mm Ø K/ O HOLE |
| Weight | : | 2.5Kg (GROSS) |
| Compliance | : | SISIR CP19, S.S, 263: PART 2, IEC 598-2-22 |
